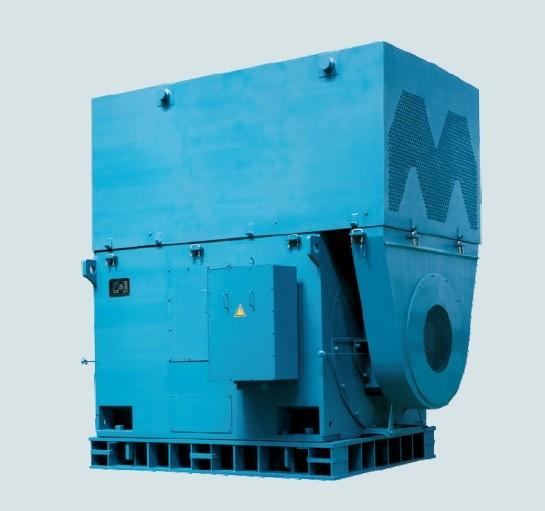

    YTM / YMPS / YHP Series High Voltage Induction Motor Asynchronous Energy Saving

    Ask Lasest Price
    Brand Name : XEMC
    Model Number : YTM 355~1120, YHP355~1120, YMPS355~1120
    Certification : ISO9001,ISO14001
    Price : USD 9000~ USD 200000
    Supply Ability : 20 sets per month
    Delivery Time : 60-110 days
    • Product Details
    • Company Profile

    YTM / YMPS / YHP Series High Voltage Induction Motor Asynchronous Energy Saving

    YTM/YHP/YMPS series of motors are specially used for coal mill developed in the early 1990s, according to IEC standard.

    YTM series motor is specially for cylindrical coal mill; YHP series motor is specially for bowl type HP coal mill and YMPS series motor is specially for bowl MPS coal mill.


    Efficiency level: High efficiency energy-saving

    Rated output: 150~8000 kW

    Rated voltage: 3000V, 3300V, 4160V, 6000V, 6300V, 6600V, 10000V

    Rated frequency (speed):

    50Hz (3000/1500/1000/750/600/500/425/375/325 r/min)

    60Hz (3600/1800/1200/900/720/600/500/450/400 r/min)

    No. of poles: 2P, 4P, 6P, 8P, 10P, 12P, 14P, 16P, 18P

    Mounting methods: Horizontal foot mounted IM1001 (B3)

    Material of frame/housing: Fabricated in welded steel plate frame

    Frame size: 355~800 frame

    Service Factor: 1.00

    Insulation Class: F (155ºC)

    Temp. Rising: ΔT=80°K

    Bearing type: Roller/Ball bearing

    Working Duty: S1 (Continuous)

    Ambient Temperature: -20°C ~ 40°C

    Altitude: <=1000 m.a.s.l

    Ambient humidity: <=90%

    Protection Class: IP44, IP54, IP55

    Cooling: IC611 Self-ventilated with air-to-air heat exchanger, heat exchanger on top of motor

    Lubricating: Grease lubricated bearings

    Grounding lug: On the frame and terminal box

    Temperature detector: PT100

    Material of nameplate: Stainless steel

    Metric Threaded Cable Entries on the Terminal Box
